Maxim DS1878高频光收发参考设计HFRD-49.1

2011年12月19日10:21:08 本网站我要评论(2)字号：T | T | T

Maxim 公司的DS1878是集成数字LDD接口的SFP+控制器，可以控制和监视SFF, SFP和SFP+ 模块所有的功能，包括所有的SFF-8472功能，支持基于VCSEL, DFB和EML的解决方案。工作电压为+2.85V 到+5.5V，主要用在SFF, SFP和SFP+收发器模块。本文介绍了DS1878主要特性，方框图，高频光收发参考设计HFRD-49.1主要特性，参考设计HFRD-49.1和HFRD-30.1主PCB方框图，参考设计HFRD-49.1电路图和材料清单。

DS1878：SFP+ Controller with Digital LDD Interface

The DS1878 controls and monitors all functions for SFF, SFP, and SFP+ modules including all SFF-8472 functionality.

The combination of the DS1878 with Maxim laser driver/limiting amplifier solutions supports VCSEL, DFB, and EML-based solutions. The device provides APC loop, modulation current control, and eye safety functionality. It continuously monitors for high output current, high bias current, and low and high transmit power to ensure that laser shutdown for eye safety requirements are met without adding external components.

Six ADC channels monitor VCC, temperature, and four external monitor inputs (MON1–MON4) that can be used to meet all monitoring requirements.

MON3 is differential with support for common mode to VCC. Two digital-to-analog (DAC) outputs with temperature- indexed lookup tables (LUTs) are available for additional control functionality.

DS1878主要特性：

♦ Meets All SFF-8472 Control and Monitoring Requirements

♦ Laser Bias Controlled by APC Loop and

Temperature LUT to Compensate for Tracking Error

♦ Laser Modulation Controlled by Temperature LUT

♦ Six Analog Monitor Channels: Temperature, VCC, MON1–MON4

MON1–MON4 Support Internal and External Calibration

Scalable Dynamic Range

Internal Direct-to-Digital Temperature Sensor

Alarm and Warning Flags for All Monitored Channels

♦ Two 9-Bit Delta-Sigma Outputs with 36 Entry Temperature LUTs

♦ Digital I/O Pins: Five Inputs, Four Outputs

♦ Comprehensive Fault-Measurement System with Maskable Laser Shutdown Capability

♦ Flexible, Two-Level Password Scheme Provides Three Levels of Security

♦ 256 Additional Bytes Located at A0h Slave Address

♦ I2C-Compatible Interface

♦ 3-Wire Master to Communicate with a Maxim Laser Driver/Limiting Amplifier

♦ +2.85V to +5.5V Operating Voltage Range

♦ -40℃ to +95℃ Operating Temperature Range

♦ 28-Pin TQFN (5mm x 5mm x 0.75mm) Package

DS1878应用：

SFF, SFP, and SFP+ Transceiver Modules

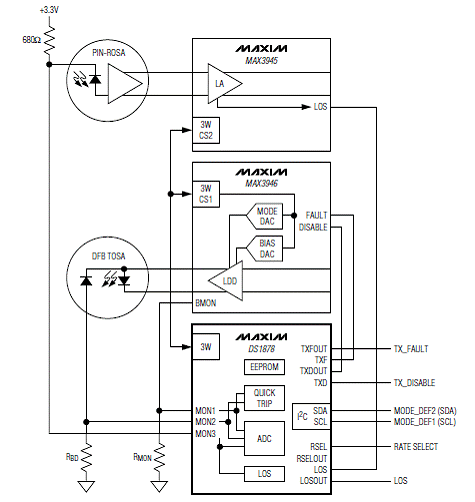

图1。DS1878方框图

Reference Design HFRD-49.1

High-Frequency Reference Design (HFRD-49.1) is an optical transceiver presented in the SFP+ form factor for demonstrating the operation of Maxim’s MAX3946 laser driver, the MAX3945 limiting amplifier, and the DS1878 controller.

The MAX3946 is optimized to d
